Nd:YAG 1064nm is widely used in dermatology because its long wavelength can penetrate deeper into skin tissue than many shorter-wavelength vascular lasers, making it valuable for selected vascular lesions, deeper vessels, and multi-technology aesthetic platforms. For medspas, it is one of the key wavelengths to understand before investing in advanced laser technology.
Not every vascular concern should be treated the same way. A superficial red vessel on the face, a deeper blue vessel, a leg telangiectasia, and a vascular birthmark can require very different thinking. Wavelength, pulse duration, fluence, cooling, vessel size, depth, and skin type all matter.
This guide explains why 1064nm Nd:YAG has earned its place in clinical laser discussions, where it fits, and what medspa owners should ask before adding it to their treatment menu.
What is an Nd:YAG 1064nm laser?
An Nd:YAG laser is a solid-state laser that commonly emits light at 1064 nanometers, a near-infrared wavelength known for deeper tissue penetration. DermNet explains that Nd:YAG stands for neodymium-doped yttrium aluminium garnet, the crystal medium used to generate the laser beam.
In aesthetics and dermatology, the 1064nm wavelength is used across several categories, including vascular lesions, hair removal, pigmented lesions, and selected rejuvenation applications. In Q-switched mode, Nd:YAG platforms may also produce a 532nm wavelength for more superficial targets.
For vascular work, the long-pulsed 1064nm mode is especially important. It allows energy to reach deeper vessels and create controlled heating of blood-containing targets when used with the correct parameters.
That does not make it a universal answer. It makes it a powerful wavelength when depth and vessel behavior matter.
Why is 1064nm used for vascular lesions?
1064nm is used for vascular lesions because it can penetrate deeply and target hemoglobin-containing vessels through controlled thermal coagulation. DermNet lists spider and thread veins, facial veins, vascular birthmarks, varicose veins, and hemangiomas among vascular conditions that may be treated with Nd:YAG lasers.
The physics is based on selective photothermolysis. The laser energy must reach the target vessel, be absorbed enough to heat the blood vessel, and deliver that heat long enough to produce vessel coagulation while limiting injury to surrounding tissue.
A peer-reviewed study on long-pulsed 1064nm Nd:YAG treatment explains that effective vascular laser treatment requires two things: the laser must penetrate to the vessel depth, and the exposure must be long enough to create slow coagulation of the vessel.
That is why vessel depth and diameter matter so much. Small superficial redness may not need the same approach as deeper or larger vessels.
What vascular lesions can Nd:YAG treat?
Nd:YAG 1064nm can be used for selected vascular lesions including facial telangiectasia, spider angiomas, leg telangiectasia, vascular birthmarks, varicose veins, and hemangiomas. The best fit depends on depth, size, skin type, provider experience, and whether another modality may be more appropriate.
| Vascular concern | Why 1064nm may be considered | Clinical planning note |
|---|---|---|
| Facial telangiectasia | Can target visible vessels | Not always first choice when vessels are very superficial |
| Spider angiomas | Can target the central vessel and branches | Requires careful endpoint control |
| Leg telangiectasia | Useful when vessel depth or needle avoidance matters | Sclerotherapy may still be preferred in many cases |
| Deeper vascular lesions | Longer wavelength can reach deeper tissue | Cooling and parameter selection are critical |
| Vascular birthmarks | May help selected lesions or resistant cases | Diagnosis and medical oversight matter |
For medspas, this is not a “treat everything” message. It is a reminder that advanced lasers require proper patient selection, training, and scope-of-practice clarity.
What does the clinical evidence say?
Clinical literature supports long-pulsed 1064nm Nd:YAG as a useful option for common cutaneous vascular lesions when used appropriately. In a 3-year retrospective study published in The Scientific World Journal, 255 patients with spider angioma, facial telangiectasia, and leg telangiectasia were treated with long-pulsed 1064nm Nd:YAG.
Among patients who completed treatment and follow-up, the study reported marked improvement or clearance in:
- 26 of 26 spider angioma patients, or 100%
- 125 of 130 facial telangiectasia patients, or 97%
- 80 of 99 leg telangiectasia patients, or 80.8%
The authors concluded that long-pulsed Nd:YAG was safe and effective for common superficial cutaneous vascular lesions, while also noting that it is not always the first choice for superficial facial vessels when depth is not the concern.
That caveat is important. Trustworthy laser education does not pretend one wavelength is always best. It explains where each tool fits.

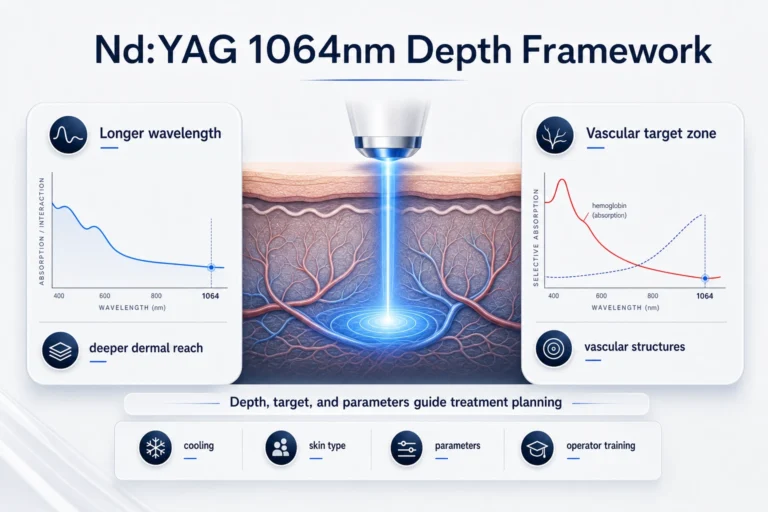

Why does penetration depth matter?
Penetration depth matters because a vascular laser must reach the vessel before it can heat it effectively. Shorter wavelengths may be excellent for superficial redness, but they may be limited when the target sits deeper in the dermis or when epidermal absorption becomes a concern.
DermNet states that the 1064nm Nd:YAG wavelength can reach deeper skin layers than other types of lasers. This deeper reach is one reason it is used for selected facial veins, leg vessels, and other vascular targets where depth is clinically relevant.
However, deeper penetration also requires discipline. Providers must control fluence, pulse duration, spot size, cooling, endpoint, and patient selection. A deeper wavelength is not automatically safer. It is a different clinical tool.
For business owners, this is exactly why training matters. Buying a platform is only the start. Your team needs to understand why a wavelength is chosen, not just how to select it on a screen.
How does Nd:YAG compare with IPL and diode technology?
Nd:YAG, IPL, and diode technologies are different tools for different clinical targets. IPL is broad-spectrum and filter-based, diode lasers are often used for hair reduction, and 1064nm Nd:YAG is valued for deeper penetration and selected vascular applications.
| Technology | Common role | Core strength |
|---|---|---|
| IPL | Pigment, redness, photorejuvenation, selected hair reduction | Versatility through broad-spectrum filtered light |
| Diode laser | Laser hair reduction | Efficient targeting of hair follicles with diode wavelengths |
| Nd:YAG 1064nm | Selected vascular lesions, hair reduction in some contexts, deeper targets | Longer wavelength and deeper penetration |
If you are comparing these technologies, read XOD’s guide to IPL vs laser and the comparison of diode vs Nd:YAG laser hair removal.
For clinics that want multiple capabilities in one ecosystem, ZELUSSO brings IPL, diode, Nd:YAG, Erbium:YAG, and Erbium:Glass technologies into an expandable platform.
What should medspa owners ask before adding Nd:YAG?
Before adding Nd:YAG, medspa owners should ask whether the device, training, and treatment menu strategy fit the patients they actually serve. A strong wavelength is only valuable when it is matched to demand, provider skill, and clear protocols.
Ask these questions before investing:
- Which vascular concerns do we see most often?
- Are those concerns superficial, deeper, or mixed?
- Does our team have the proper scope and training for vascular laser work?
- How does the platform manage cooling and patient comfort?
- Can the device support multiple technologies beyond Nd:YAG?
- How will this expand our menu without creating operational complexity?
- What education and support does the vendor provide after purchase?
That last question matters more than most owners realize. Laser technology is not just a capital purchase. It is a clinical and operational commitment.
XOD’s device decision framework can help practices think through device choice by clinic profile, service goals, and growth stage.
Clinical references used in this article
The clinical foundation for 1064nm Nd:YAG includes wavelength penetration, selective photothermolysis, vascular lesion selection, and careful parameter control. The following sources informed this educational overview:
- DermNet: Nd:YAG laser treatment – overview of Nd:YAG wavelength, uses, vascular indications, and treatment considerations.
- Treatment of Superficial Cutaneous Vascular Lesions with Long-Pulsed 1064nm Nd:YAG – 3-year retrospective experience with 255 patients.
- PubMed abstract for the same Nd:YAG vascular lesion study – summary of efficacy and safety findings.
- XOD ZELUSSO – multi-application platform including IPL, diode, Nd:YAG, Erbium:YAG, and Erbium:Glass technologies.
